제품소개

Features
▷ Double side SMT, short card , power saving
▷ Connect directly to DB-24P,DB-24R, DB-24PR, DB-24SSR, DB-24POR and other OPTO-22     compatible daughter board
▷ 168 I/O Lines
▷ Emulate 7 Industrial standard 8255 mode 0
▷ Programmable interrupt
▷ Six 50-pin falt cable connectors & one 37-pin
▷ D-sub connector
▷ Output status readback

Specification & Introduction

▷ PC compatible PCI bus

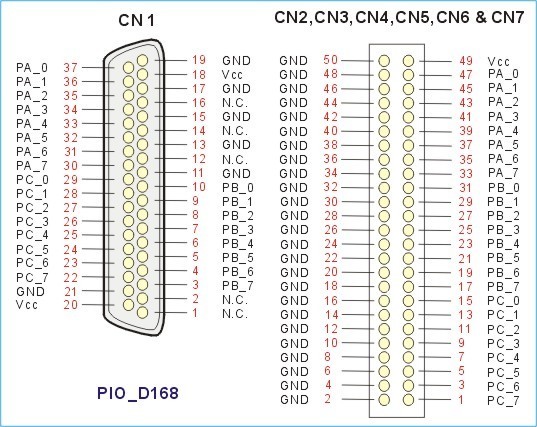

▷ One DB-37 connector and six 50-pin flat-cable connectors
▷ Each connector consists of three 8-bit port, PA, PB & PC in every connector
▷ Each port can be programmed as D/I or D/O independently.
▷ Each board = 7 connector = 7*3 port = 7*3*8 bit =168 bit
▷ 4 interrupt sources : CN1 PC0,PC1,PC2,PC3
▷ All signals are TTL compatible
▷ Operating Temperature: 0 to 60 deg/C
▷ Storage Temperature: -20 to 80 deg/C
▷ Humidity: 0 to 90% non-condensing
▷ Dimensions: 200mm X 105mm
▷ Power Consumption: +5V @ 1300mA

Ordering Information

▷ PIO-D168 : PCI bus 168-bit OPTO-22 DIO board
