I-7563

ㆍ▷ USB to 3-channel RS-485 Converter Hub

ㆍ▷ Full speed with USB 1.1 specifications.

ㆍ▷ Input Port: USB

ㆍ▷ Output Port: Three RS-485

Manual

Data sheet

Features

  * Full speed with USB 1.1 specifications.
  * Input Port: USB
  * Output Port: Three RS-485
  * Speed: "Self Tuner" inside
  * 3000 Vdc isolation protection provided
  * Photo-coupler isolation: 2500V rms
  * 256 modules max. (All channels)
    RS-485 network without repeater.
  * 2048 modules max. (All channels)
    RS-485 network with repeater
  * Repeater request:4,000 feet or over  256  modules
  * Plug-and-play installation
  * The I-7563 gets the power from USB port;no need external power supply
  * Windows 98/ME/2000/XP and Linux drivers supported. Driver for other operating system are
    currently under development

Specification & Introduction

▷ Specifications
  * Compatibility: USB 1.1 and 2.0 standard
  * Input port: USB
  * Output port: Three Port RS-485
  * Cable: USB type A connector (Type A to Type B cable provided)
  * RS-485 signals: DATA+,DATA-
  * "Self Tuner" inside, support multiple Baud Rate and multiple Dtat Format.
  * 256 modules max. (All channels)
    RS-485 network without repeater.
  * Repeater request:4,000 feet or over 256 modules
  * Communication distance:1.2Km/9600 bps
  * Mounting: Din-rail, wall mounting piggyback stack
  * Operating temperature:-25°C to +75°C
  * Storage temperature:-25°C to +80°C
  * Humidity:5~95%
  * Dimensions:123 mm x 72 mm x 33 mm
  * Driver supported: Windows 98/ME/2000/XP and Linux

Ordering Information
▷ Introduction
 The I-7563 is a cost-effective module for transfer serial data over USB. It allows you to connect your serial devices to systems using a USB interface. Connectibg the I-7563 to a PC, The I-7563 contains "Self Tuner" This chip auto-tunes the baud rate and data format to the Rs-485 natwork. The I-7563 module derives the power from the USB port and doesn't need any power adapter. It also features a high-speed 115.2 Kb/s transmission rate, and supports various O.S.

Do you have any RS-485 wiring problems? The I-7563 is USB to three ports RS-485 Hub. Each channel has  its own RS-485 driver IC on it, so it can support star-shaped wiring.

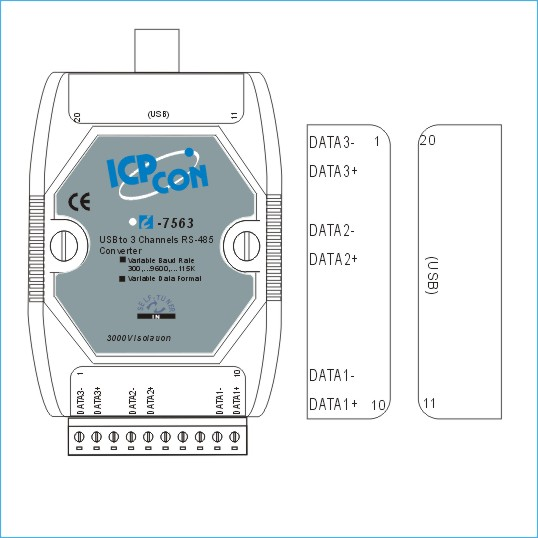

▷ I-7563 : USB to 3-channel RS-485 Converter Hub
