VXC-144

ㆍ▷ Universal PCI Bus, 4-port RS-422/485 Communication Board

ㆍ▷ Supports PCI bus, Plug and Play

ㆍ▷ Provides 4-port RS-422/485

ㆍ▷ Provides surge protection

Data sheet

Features

▷ Supports PCI bus, Plug and Play
▷ Provides 4-port RS-422/485
▷ Provides surge protection
▷ LED diagnostic indicators
▷ DOS, Windows NT/2K/XP/2003 and Linux driver supported

Specification & Introduction

▷ Universal PCI , 3.3v and 5V , 33MHz, 32-bit, Plug and Play mechanism
▷ Number of ports: 4
▷ Interface: Non-isolated RS-422/485
▷ UART: 16C550 compatible
    Speed: 50~115200 bps
    Data bit :5,6,7,8
    Stop bit:1,1.5,2
    Parity: None, Even, Odd, Mark, Space
    FIFO: Internal 16 bytes

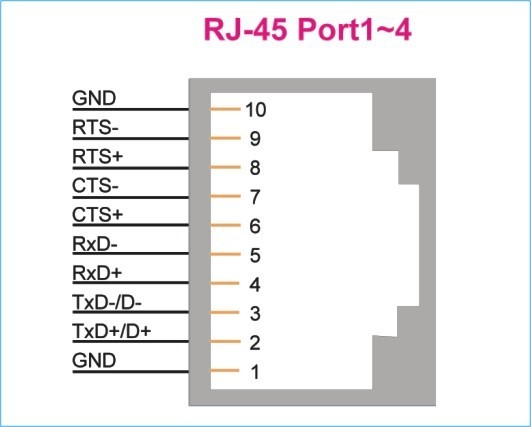

▷ Connector: 10-pin female RJ-45 jack
▷ Operation temperature:0~50℃
▷ Storage temperature: -20℃ to 70℃
▷ Humidity:0~90% non-condensing
▷ Dimensions: 130 mm x 105 mm

Ordering Information

▷ VXC-144  Universal PCI Bus, 4-port RS-422/485 Communication Board
