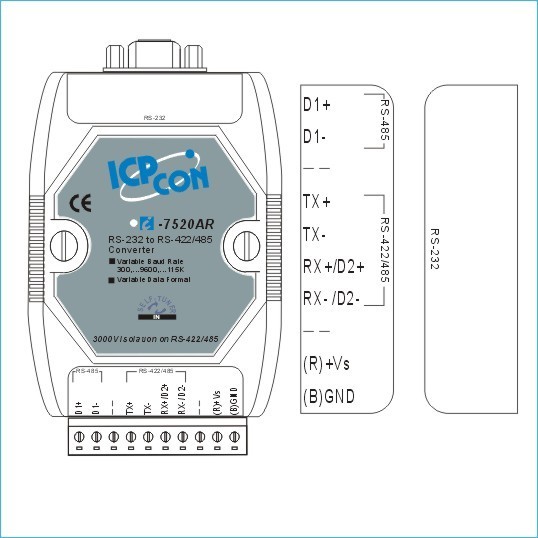

I-7520AR

ㆍ▷ 3000V 급으로 절연된, 산업용 RS-232 / 485 통신컨버터

ㆍ▷ Input : RS-232 protocol

ㆍ▷ Output : RS-485/RS-422 protocol

ㆍ▷ Speed : auto switching baud rate, 300~115200 bps

Manual

Data sheet

Features

▷ Input : RS-232 protocol
▷ Output : RS-485/RS-422 protocol
▷ Speed : auto switching baud rate, 300~115200 bps
▷ "Self Tuner" inside,
▷ 256 modules max. in one RS-485 network without repeater
▷ 2048 modules max. in one RS-485 network with repeater
▷ Isolation voltage: 3000Vdc at RS-485/422 side
▷ Repeater request: 4,000 feet or over 256 modules
▷ Input power : 10Vdc ~ 30Vdc
▷ Power consumption: 2.2W max.

Specification & Introduction


Ordering Information
▷ I-7520AR : I-7520A with 3000V DC isolation at RS-485 side
