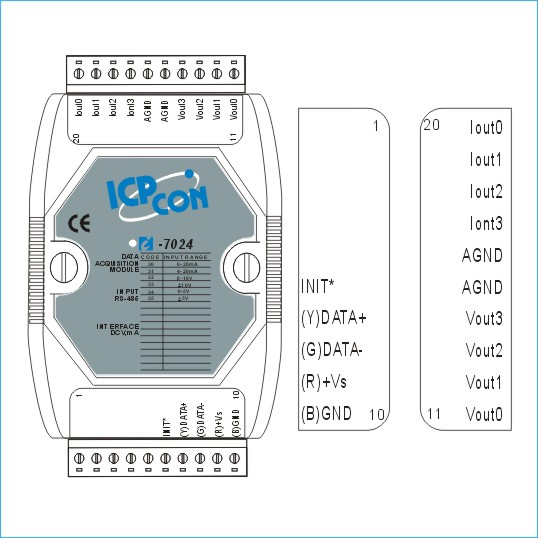

I-7024

ㆍ▷ 4-channel 14-bit analog output Module

ㆍ▷ Photo-isolation: 3750 Vrms

ㆍ▷ Indication LED Light: for power and communication

ㆍ▷ Channels: 4

Manual

Data sheet

Features

▷ Analog Output
  * Photo-isolation: 3750 Vrms
  * Indication LED Light: for power and communication
  * Channels: 4
  * Output type: mA, V
  * Output range : 0~20mA, 4~20mA,
                          0~5V, +/-5V, 0~10V, +/-10V
  * 14-bit resolution
  * accuracy: ± 0.1% of FSR
  * Resolution: ± 0.02% of FSR
  * Zero drift : Voltage output: ± 30uV/deg C
                    Current output: ± 0.2uA/deg C
  * Span temperature coefficient: ± 20ppm/ C
  * Programmable output slope:
    0.125 to 2048 mA/sec
    0.0625 to 1024 V/sec
  * Current load resistor :External +24V power: 1050 Ohms

▷ Communication Interface
      RS-485

▷ Power Supply
  * Input:+10 to +30Vdc
  * Power consumption: 2.4W

Specification & Introduction


Ordering Information
▷ I-7024 : 4-channel 14-bit Analog Output  Module
