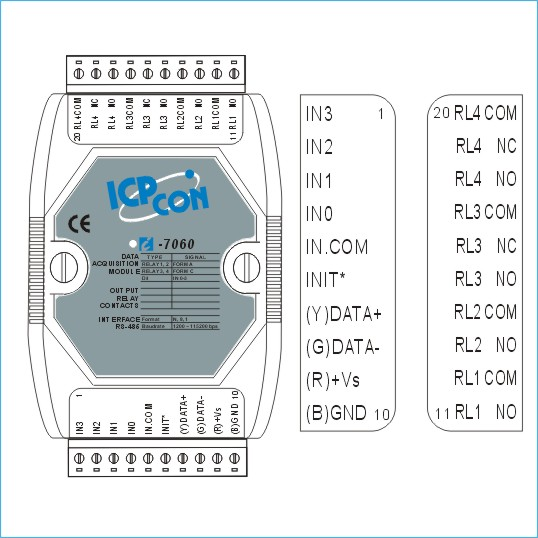

I-7060

ㆍ▷ 4-channel Relay Output and 4-channel isolated Digtal Input Module

ㆍ▷ Channels: 4

ㆍ▷ Isolation voltage: 3750Vrms

ㆍ▷ Input impedance: 3KO , 0.5W

Manual

Data sheet

Features

▷ Digital Input
  * Channels: 4
    Four isolated channels with common power
  * Digital input :
    Logic level 0: +1V max.
    Logic level 1: +3.5 to 30V
  * Isolation voltage: 3750Vrms
  * Input impedance: 3KO , 0.5W
  * D/I can be used as counter channels: 4
    Input Frequency : 100Hz
    16-bit : 0~6,5535

▷ Digital Output
  * Relay output
  * Channels: 4
  * Two form “A”relay SPST (N.O.)
  * Two form “C”relay SPDT
  * Dry contact
  * Characteristics
  * Contact rating:
    AC: 125V @0.6A; 250V @0.3A
    DC: 30V @2A; 110V @0.6A
  * Breakdown voltage: 500VAC (50/60Hz)
  * Relay on time(typical): 3ms
  * Relay off time(typical): 1ms
  * Total switching time: 10ms
  * Insulation resistance: 1000MW min. at 500Vdc

▷ Communication Interface
          RS-485

▷ Power Supply
  * Input: +10 to +30Vdc
  * Power consumption: 1.3W

Specification & Introduction


Ordering Information
▷ I-7060 : Relay output and digital input module
