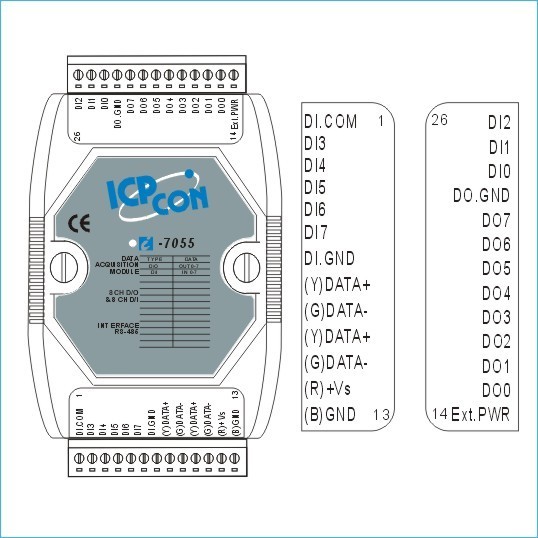

I-7055

ㆍ▷ 8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module

ㆍ▷ Channels: 8

ㆍ▷ logic level 0: close to GND

ㆍ▷ logic level 1: open

Manual

Data sheet

Features

▷ Digital Input
  * Channels: 8
  * Digital input status
    Dry contact:
    logic level 0: close to GND
    logic level 1: open
    Wet contact:
    logic level 0: +4V max.
    logic level 1: +10V to +50V
    Effective distance for dry contact: 500m max.
  * D/I can be used as counter channels: 8
    Input Frequency : 100Hz
    16-bit : 0~6,5535
  * Optical Isolation: 3750 Vdc

▷ Digital Output
  * Channels: 8
  * External Voltage: 10 to 40V max
  * Output current: 650mA per channel
  * Short Circuit Protection
  * Direct drive power relay module

▷ Communication Interface
          RS-485

▷ Power Supply
  * Input :+10 to +30Vdc
  * Power consumption:1.2W

Specification & Introduction


Ordering Information
▷ I-7055 : 8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module
