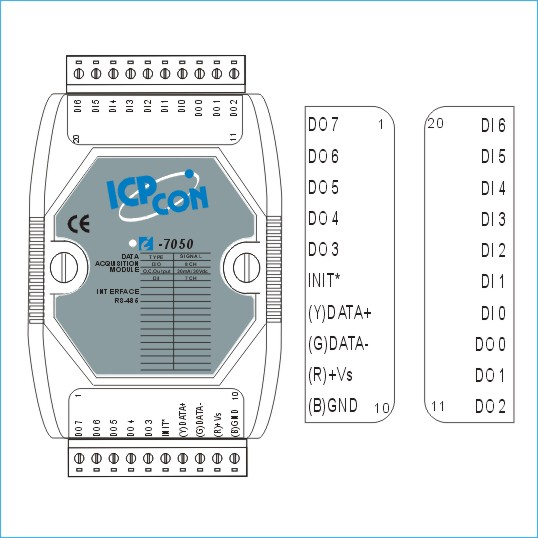

I-7050

ㆍ▷ I-7050:Digital I/O Module

ㆍ▷ Channels: 7 (Sink)

ㆍ▷ Logic level 1: +3.5V ~ +30V

ㆍ▷ Logic level 0: +1V max.

Manual

Data sheet

Features

▷ Digital Input
  * Channels: 7 (Sink)
  * Digital input status
    Logic level 1: +3.5V ~ +30V
    Logic level 0: +1V max.
  * D/I can be used as counter channels: 7
    Input Frequency : 100Hz
    16-bit : 0~6,5535

▷ Digital Output
  * Channels: 8  (NPN, Sink)
     Open collector to 30V, 30mA max. load
     Power dissipation: 300mW

▷ Communication Interface
          RS-485

▷ Power Supply
  * Input : +10 to +30Vdc
  * Power consumption : 0.4W

Specification & Introduction


Ordering Information
▷ I-7050 : Digital I/O module
