I-7018

ㆍ▷ 8-channel Analog Input Module

ㆍ▷ Photo-isolation: 3750 Vrms

ㆍ▷ Type:  mV, V ,  mA (requires optional external 125 ohm resistor)

ㆍ▷ Thermocouple: Type J, K, T, E, R, S, B, N, C

Manual

Data sheet

Features

▷ Analog Input
  * Photo-isolation: 3750 Vrms
  * Type:  mV, V ,  mA (requires optional external 125 ohm resistor)
  * Thermocouple: Type J, K, T, E, R, S, B, N, C

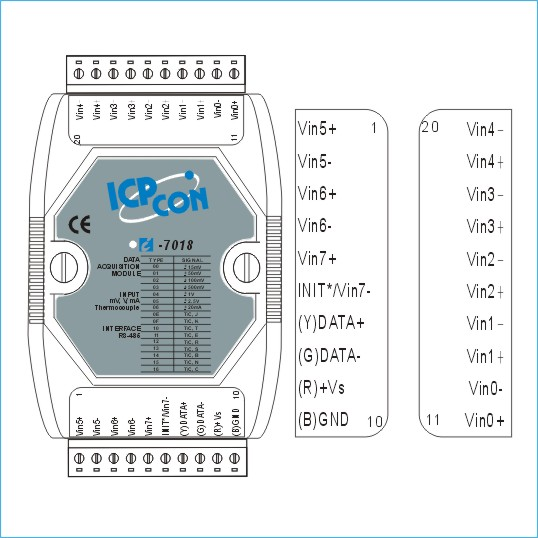

  * Channels : 8 differential or 6 differential and  2 single-ended by  jumper select
  * Voltage range:  ±15mV, ± 50mV , ± 100mV, ± 500mV, ± 1V, ± 2.5V
  * Current range: ± 20mA
  * Sampling rate: 10 Samples/Second
  * Bandwidth: 15.7 Hz
  * Accuracy: ± 0.1%
  * Zero drift: ± 25uV/°C
  * CMR @ 50/60 Hz: 150 dB
  * NMR @ 50/60 Hz: 100 dB
  * Span drift: 25ppm/°C
  * Over voltage protection: ± 35V
  * Isolation: 3000Vdc

▷ Communication Interface
    RS-485

▷ Power Supply
  * Input : 10~30Vdc
  * Consumption: 1.0W

▷ Thermocouple type
Type             Range (C)
   J                -210~ +760
   K                -270~+1372
   T                -270~+400
   E                -270~+1000
   R                   0~+1768
   S                   0~+1768
   B                   0~+1820
   N                -270~1300
   C                   0~2320
   L                -200~800 (For 7018P only)
   M               -200~100 (For 7018P only)
 L DIN43710     -200~900 (For 7018P only)

Specification & Introduction


Ordering Information
▷ I-7018 : 8-channel Thermocouple Input Module
▷ I-7018P : 8-channel Thermocouple Input Module
