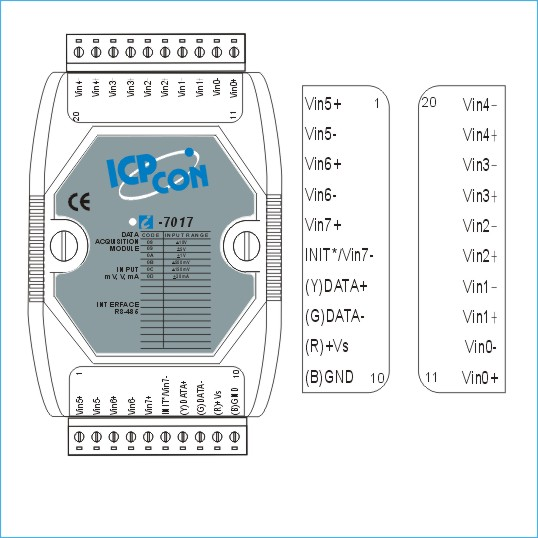

I-7017

ㆍ▷ 8-channel Analog Input Module

ㆍ▷ Channels : 8 differential or 6 differential and  2 single- ended by  jumper select

ㆍ▷ Resolution : 16-bit

ㆍ▷ Input type : mV, V , mA (requires optional external 125 ohm resistor)

Manual

Data sheet

Features

▷ Analog Input
  * Channels : 8 differential or 6 differential and  2 single- ended by  jumper select
  * Resolution : 16-bit
  * Input type : mV, V , mA (requires optional external 125 ohm resistor)
  * Input range : ± 150mV, ± 500mV , ± 1V, ± 5V, ± 10V and ± 20mA
  * Sample rate : 10 Samples/Second
  * Bandwidth : 15.7 Hz
  * Accuracy : ± 0.1%
  * Zero drift : ± 20uV/°C
  * Span drift : ± 25ppm/°C
  * CMR @ 50/60 Hz : 86 dB min
  * NMR @ 50/60 Hz : 100 dB
  * Input Impedance : 20M Ohms
  * Over voltage protection : ± 35V
  * Isolation : 3000Vdc

▷ Communication Interface
      RS-485

▷ Power Supply
  * Input: +10 to +30Vdc
  * Consumption :1.3W

Specification & Introduction


Ordering Information
▷ I-7017 : 8-channel Analog Input Module
