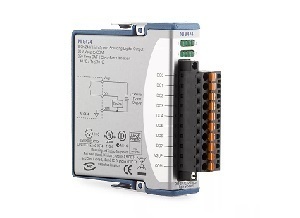

NI-9474 SPT / 783908-01

ㆍ▷ 30 V, 8 채널 (소싱 출력), 1 μs C 시리즈 디지털 모듈

ㆍ▷ Screw-terminal or spring-terminal connectivity

ㆍ▷ CompactDAQ counter compatibility

ㆍ▷ 250 Vrms, CAT II, channel-to-earth isolation

Data sheet

Features
• Screw-terminal or spring-terminal connectivity
• CompactDAQ counter compatibility
• 250 Vrms, CAT II, channel-to-earth isolation

Specification & Introduction
 Output Characteristics
• Number of channels
    8 digital output channels
• Output type
    Sourcing
• Power-on output state
    Channels off
• External power supply voltage range (Vsup)
    5 VDC to 30 VDC
• Output impedance (R0)
    Typical
        0.07 Ω
    Maximum
        0.13 Ω
• Continuous output current (I0), per channel
    1.0 A maximum
• Output voltage (V0)
    Vsup - (I0 · R0)
• I/O protection
    Voltage
        30 VDC maximum
    Reversed voltage
        None
    Short circuit trip time
        10 µs at 14 A
• Output delay time (full load)
    1 µs maximum
• MTBF
    479,889 hours at 25 °C; Bellcore Issue 2,
    Method 1, Case 3, Limited Part Stress Method
 Power Requirements
• Power consumption from chassis
    Active mode
        660 mW maximum
    Sleep mode
        0.6 mW maximum
• Thermal dissipation (at 70 °C)
    Active mode
        1.5 W maximum
    Sleep mode
        0.6 mW maximum
